W600 – New Generation Embedded Wi-Fi SoC Chip
W600
Product introduction

W600 is an embedded Wi-Fi SoC chip which is complying with IEEE802.11b/g/n international standard and which supports multi interface, multi protocol. It can be easily applied to smart appliances, smart home, health care, smart toy, wireless audio & video, industrial and other IoT fields. This SoC integrates Cortex-M3 CPU, Flash, RF Transceiver, CMOS PA, BaseBand. It applies multi interfaces such as SPI, UART, GPIO, I2C, PWM, I2S, 7816. It applies multi encryption and decryption protocol such as PRNG/SHA1/MD5/RC4/DES/3DES/AES/CRC/RSA.





  • Product introduction
  • Detailed specification
  • Technical documentation
  • Development tool
  • Software data
  • Video data

W600 is an embedded Wi-Fi SoC chip which is complying with IEEE802.11b/g/n international standard and which supports multi interface, multi protocol. It can be easily applied to smart appliances, smart home, health care, smart toy, wireless audio & video, industrial and other IoT fields. This SoC integrates Cortex-M3 CPU, Flash, RF Transceiver, CMOS PA, BaseBand. It applies multi interfaces such as SPI, UART, GPIO, I2C, PWM, I2S, 7816. It applies multi encryption and decryption protocol such as PRNG/SHA1/MD5/RC4/DES/3DES/AES/CRC/RSA.


1.Chip Introduction:
W600 is an embedded Wi-Fi SoC chip which is complying with IEEE802.11b/g/n international standard and which supports multi interface, multi protocol. It can be easily applied to smart appliances, smart home, health care, smart toy, wireless audio & video, industrial and other IoT fields. This SoC integrates Cortex-M3 CPU, Flash, RF Transceiver, CMOS PA, BaseBand. It applies multi interfaces such as SPI, UART, GPIO, I2C, PWM, I2S, 7816. It applies multi encryption and decryption protocol such as PRNG/SHA1/MD5/RC4/DES/3DES/AES/CRC/RSA.


2.Detailed Spec:
Chip Function Block Diagram


3.Introduction of Chip Packaging:

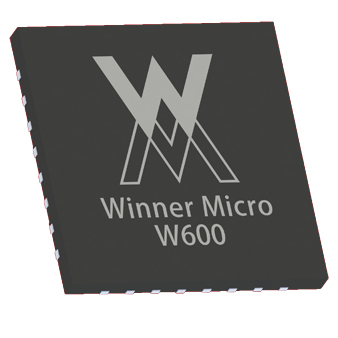

QFN32


4.Spec Introduction:

4.1 Chip Integration

Integrated 32bit Embedded Cortex-M3 CPU;
Integrated 288Kbyte RAM;
Integrated 1Mbyte Flash;
Integrated 2.4G Transceiver with IEEE802.11 Specification;
Integrated PA/LNA/TR-Switch;
Integrated 32.768KHZ Clock Oscillator;
Integrated Encrypted Hardware Accelerator; support ;PRNG/SHA1/MD5/RC4/DES/3DES/AES/CRC/RSA;


4.2 Chip Interface:

SDIO

2 x UART,38Kbps~2Mbps;

1 x High Speed SPI, Max 50Mbps;

I²C
PWM
I²S
GPIO

7816


4.3 Wi-Fi Protocol And Function

IEEE802.11b/g/n
WAPI2.0
Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS
Wi-Fi Director
Support 20/40M bandwidth working mode

Support STA/AP/AP+STA mode


PC Tools:

W60X-EM-WIFI.rar


Eclipse & Cygwin & OpenOCD  Develope IDE:

W60X_IDE.rar



OpenOCD:

w60x_openocd_0.10.0_r1.zip



MicroPython:

W60X_MicroPython_1.9.4_B1.zip

W60X_MicroPython_1.9.4_B1_IMG.zip



Technical support:bangze technology
