WMAP1000-OX Wireless AP

Specification

Introducing WinnerMicro’s state-of-the-art Outdoor Access Point (AP), designed to deliver seamless wireless connectivity and exceptional performance for both residential and commercial environments. Featuring advanced WiFi 6 technology, this AP supports high-speed data transfer rates of up to 3000 Mbps, enabling a reliable connection for multiple devices simultaneously.

With dual-band support across 2.4 GHz and 5 GHz frequencies, users can enjoy enhanced coverage and reduced interference. The AP is equipped with MU-MIMO technology, allowing for efficient communication with multiple users at once, significantly improving network efficiency and performance.

Security is a top priority. Our AP supports the latest WPA3 encryption standards, ensuring robust protection against unauthorized access and data breaches. Additionally, with built-in wireless intrusion prevention systems (wIPS), it actively monitors the network for potential threats.

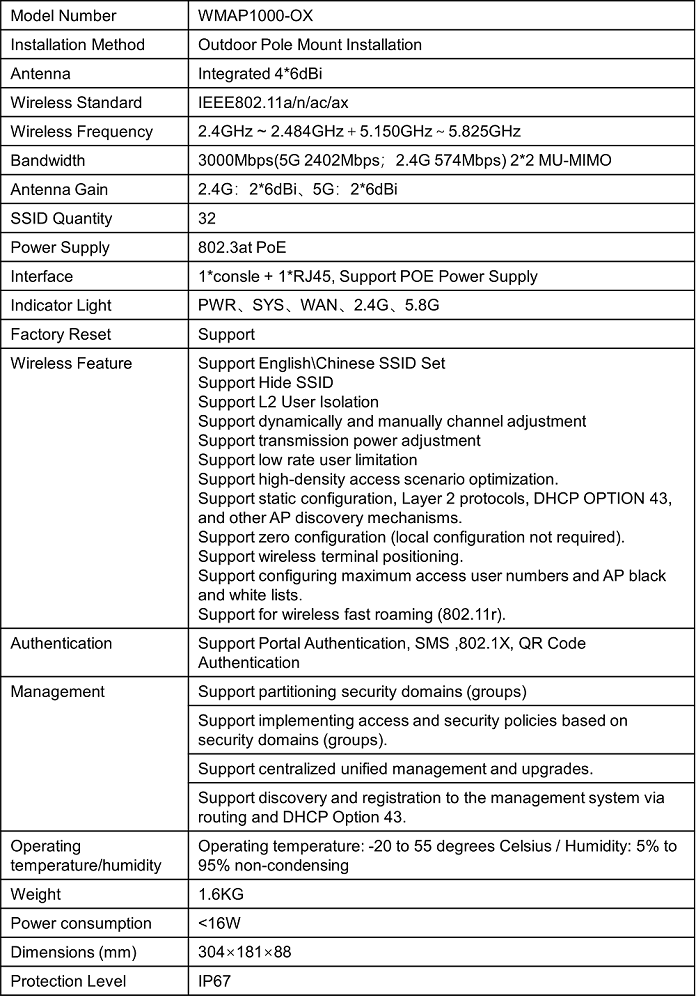

Designed for easy installation, the AP supports both local and cloud management options, providing flexibility for various deployment scenarios. Its sleek, compact design allows it to blend seamlessly into any environment, while powerful antennas maximize coverage and minimize dead spots.Whether for a busy office, a bustling cafe, or a smart home, our Access Point is the perfect solution for achieving reliable, highspeed wireless connectivity anywhere. Below are key features specification.

• Supports the new international WiFi 6 (802.11ax) standard, providing better transmission quality, higher transmission speeds (up to 3000Mbps), increased bandwidth (160MHz), and larger user capacity (128+);

• Supports the new WPA3 international standard encryption and authentication scheme;

• Supports Portal authentication system, offering rich identity authentication capabilities through accounts, AD domain, 802.1x, SMS, QR codes, and more;

• Supports fast wireless switching, enabling seamless roaming for users, providing support for mobile office needs of multi-branch enterprises;

• Supports both local and remote distributed deployment with zero configuration, achieving unified and flexible operation and maintenance management capabilities for WLAN;

• Supports layer 2 isolation between APs, effectively ensuring the security of mobile user information;

• Supports real-time push of wireless information, enhancing and expanding the efficiency and channels of enterprise information transmission;

• Equipped with MU-MIMO technology, allowing for greater wireless data throughput, faster connection speeds, and supporting RF optimization and load balancing for more stable operation;

• Leading wireless intrusion prevention (wIPS) technology effectively detects unauthorized wireless connections, rogue hotspots, WiFi phishing, DoS attacks, man-in-the-middle attacks, brute-force cracking, incorrect WPS and WDS activation, and over a hundred types of wireless security incidents, automatically implementing countermeasures to provide 24/7 continuous, stable, and reliable security protection for the wireless environment;

• A powerful and efficient wireless security engine monitors WLAN operations in real-time using wireless probes, detects security risks, provides in-depth analysis and statistics, and displays rich, vivid, and intuitive visualized security data to support the formulation of security management standards and decision-making;

• Supports wireless security domains, providing customizable and precise security protection strategies;

• Supports a simple and flexible distributed deployment architecture for quick system management and operation upon installation;

• Supports centralized dynamic changes to access and security modes to meet users' scenario-based requirements;

• Equipped with lightning protection on network ports to meet outdoor harsh weather requirements.
